Optical Density 측정
- 작성자 관리자
- 조회수 245
2022-12-21 13:19:41
■ Measurement Item |
| - LCD Color Filter BM Optical Density Measurement - Measurement Range : Adjusable 3지수 order - Spectral Range(300~880nm), Sensitivity(at 420nm) : 17V/nW Stability : ±0.01 OD - Measurement Point : Multi-Point, Multi-Step - Measurement Tact Time : 1 Point measure ≒ 1 sec - Multi-Channel Fixed measurement |
| ■ Application |
| - LCD Color Filter BM |

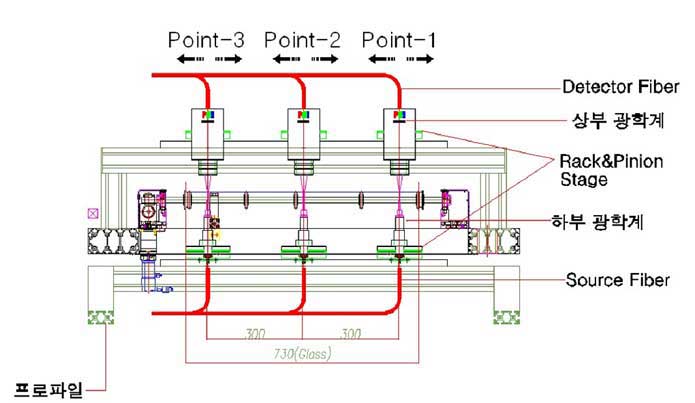

| ■ System Configuration |
| - OD METER(DARSA-OD) - S/W : DarsaBM - Computer Control System - TCP/IP & RS-232 Interface Communication - Interface & Communication function for other device link |
