Micro Spectrometer
- 작성자 관리자
- 조회수 262
2022-12-21 13:17:43
 |
 |
| ■ Measurement Item |
| - LCD Color Filter Transmittance Measurement - LCD Color Filter Color Coordinates (CIE x, y, UCS u’v’) Analysis - Spectral Range(300~1000nm), 0.96nm Resolution Accuracy L(λ) ± 0.5, CIE x,y ±0.0005 - Measurement Point : Multi-Point, Multi-Step - Measurement Tact Time : 1 Point measure ≒ 3.5 sec - Multi-Channel Fixed measurement |
| ■ Application |
| - LCD Color Filter |

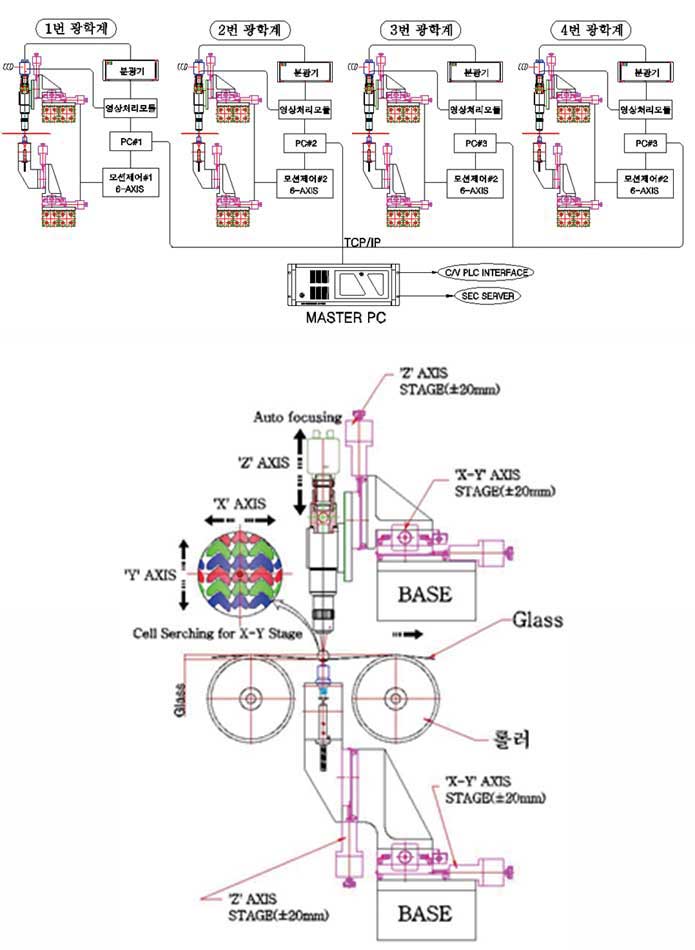

| ■ System Configuration |

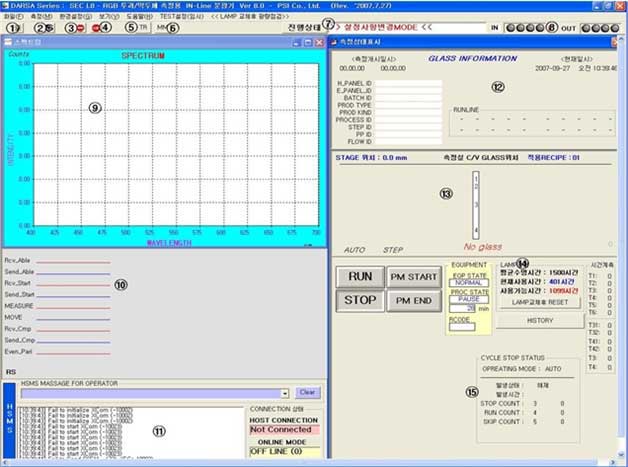

| - Spectrometer(DARSA-RGB) - S/W : DarsaPro70, DarsaRGB - Computer Control System - Detection Spot Size : 30um - Working distance : 34mm - Moving Stroke : 30mm - Resolution : ±0.5um, Accuracy : 1um - TCP/IP & RS-232 Interface Communication - Interface & Communication function for other device link |
| ■ Detail |
 |
